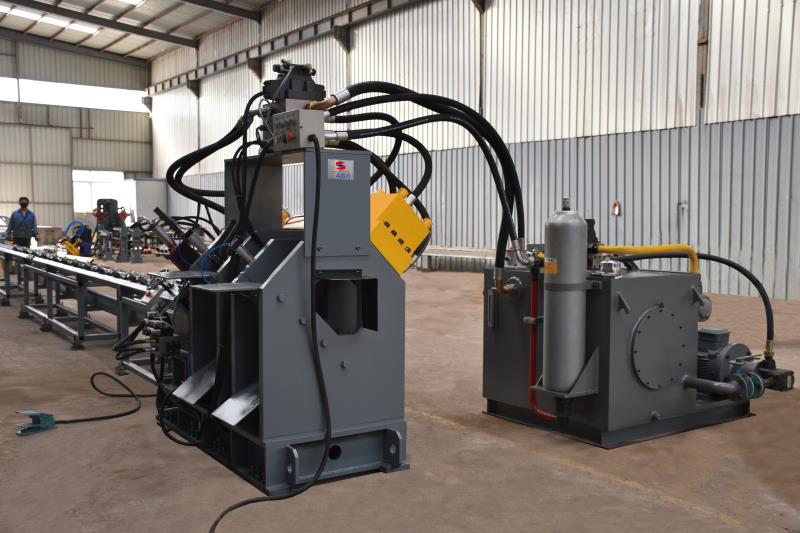

■ BP 係列 /BPG 係列數控扁鋼、槽鋼、抱箍組合生產線 BP/BPG Series CNC Combined Production Line for Flat&Channel Steel Punching Marking and Shearing and Clamp Making

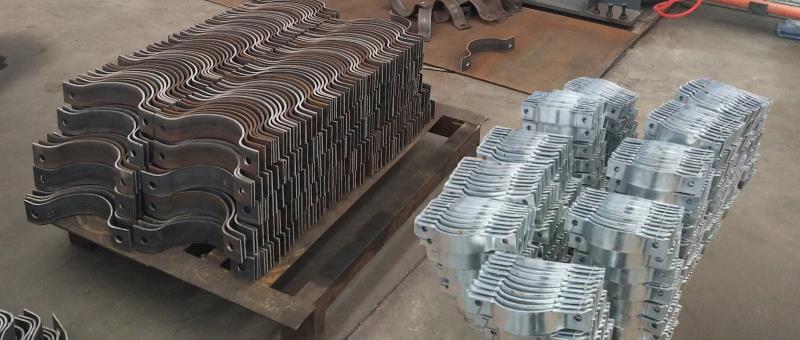

◆適用範圍 Application 該設備主要用於電力鐵塔、鐵附件行業中扁鋼和槽鋼的打字、衝孔和切斷以及電力抱箍的壓型;還可應用於建築鋼模板、 汽車板簧等行業。 This production line is mainly used for marking, punching and shearing of flat& channel steel and clamp making, which widely used transmission angle tower, steel construction, automobiles leaf spring and other industries.
◆產品結構特征 Product structure characteristics 1、扁鋼打字、衝孔、剪切、壓型於一體，直接出電力抱箍，使用範圍廣，開機效率高。 2、采用數控技術，伺服電機送進，效率高，精度穩定。 3、精準且全麵的操作係統，十分簡單易學。 4、具備自我診斷功能。 5、根據客戶要求，可實現智能物聯功能 1. Integrating marking punching shearing and pressing of flat steel, making the clamps directly, has a wide range of applications and high working efficiency. 2. dopting CNC technology and servo motor feeding, has high efficiency and stable accuracy 3. Equipping with accurate and comprehensive operating system, easy to operate 4. Equipping with self-diagnosis function 5. Intelligent IOT function can be achieved as customer’s requirements
◆技術參數 Technical parameter
| 型 號 Model | BP1410 | BPG1412 | |||||||
| 加工範圍 | 扁鋼 Flat steel(mm) | 40×4-140×12 | |||||||
| Processing area | 槽 鋼 Channel | 8#-14 號 # | |||||||
| 圓抱箍尺寸 Dia. Of Molding(mm) | / | φ160-φ500 | |||||||
| 衝孔力 Punching force(KN) | 800 | ||||||||
| 衝孔 punching | 衝孔模位數 | 3 | |||||||
| Number of punching die( 個 ) | |||||||||
| 衝孔直徑 Punching | diameter(mm) | 圓孔 circular hole:φ26、長孔 Long hole 22x50 | |||||||
| 打字力 Marking | force(KN) | 650 | |||||||
| 打字組數 ( 組 ) | 4 | ||||||||
| 打 字 | Group of marking characters | ||||||||
| Marking | 字頭數量 ( 個 ) | 12 | |||||||
| Qty of marking | characters | ||||||||
| 字頭尺寸 Character size(mm) | 14×10×19 | ||||||||
| 切斷 | 剪切力 Shear nominal force(KN) | 950 | |||||||
| shear | 切段方式 Shear mode | 槽鋼單剪 ; 扁鋼單直剪、圓弧雙剪 | |||||||
| Angle and channel steel：single blade Flat | steel: straight shear and shear with arc | ||||||||
| 送料方式 Feeding mode | 數控小車送料 Feeding by CNC infeeding carriage | ||||||||
| 送料速度 Feeding speed(m/min) | 50-80 | ||||||||
| 加工精度 Machining accuracy | 符合 Reunite with GB2694-2010 | ||||||||
| 編程方式 Programming mode | Aoto CAD 繪圖或放樣軟件 Drawing or lofting software | ||||||||
| 程序功能 Program function | 故障語言顯示 Fault | Language Display | |||||||
| 外形尺寸 Overall size (mm) | 16000×4000×2000 | 17000×4000×2000 | |||||||
